Unleash Your Creativity with the Gladstone G70 Tile Extruder: Versatile and Efficient

Precision Extrusion for Tiles and More

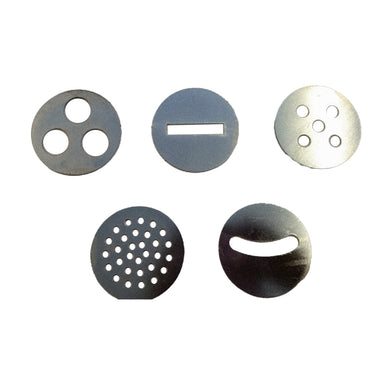

The Gladstone G70 Tile Extruder is a highly versatile machine designed for the precise extrusion of tiles, mouldings, and coils. With its standard 100 mm diameter nose cone and optional die plates, users can create various shapes, including hollow forms. This extruder is purpose-built for small clay manufacturers, incorporating a high-torque motor gearbox unit for optimal performance. The newly designed nose cone outlet allows for the extrusion of tiles up to approximately 280 mm wide and 25 mm thick, while smaller and thinner tiles can be crafted using accessory die plates. Designed with the understanding that extruding is an exact science, the G70 is equipped for fine-tuning with variable blades and additional options.

Key Features of the G70 Tile Extruder

Versatile Extrusion - Capable of extruding tiles, mouldings, coils, and hollow forms using optional die plates.
High Torque Motor - Designed around a larger motor gearbox unit for efficient operation.
Customizable Output - Fitted with variable blades to fine-tune the extrusion process.
Easy Cleaning - Split body design facilitates straightforward maintenance and cleaning.

Technical Specifications of G70 Tile Extruder

Model	G70
Delivery Weight	270kg
Vacuum Pump	High volume oil immersed
Drive Motor	2.2Kw (3 Hp) reduction drive gearbox direct drive, 230V single phase / 400V three phase
Output	Approximately 500 Kg per hour; With tile nose cone approximately 60/80 sq ft per hour
Dimensions (mm)	1905 mm long x 690 mm wide x 1050 mm high
Construction	Cast Aluminium 200mm barrel with 100mm tile nose cone extrusion, split body for easy cleaning
Optional Extras	Variable speed / Stainless steel pack
Finish	Durable powder coated
